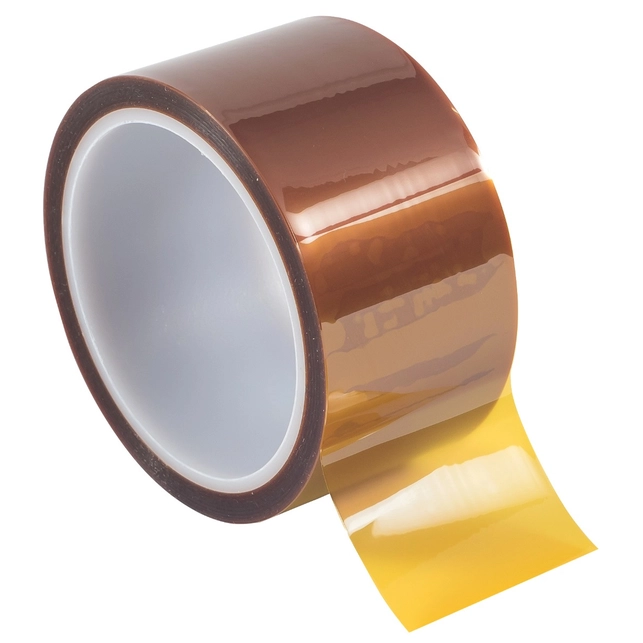

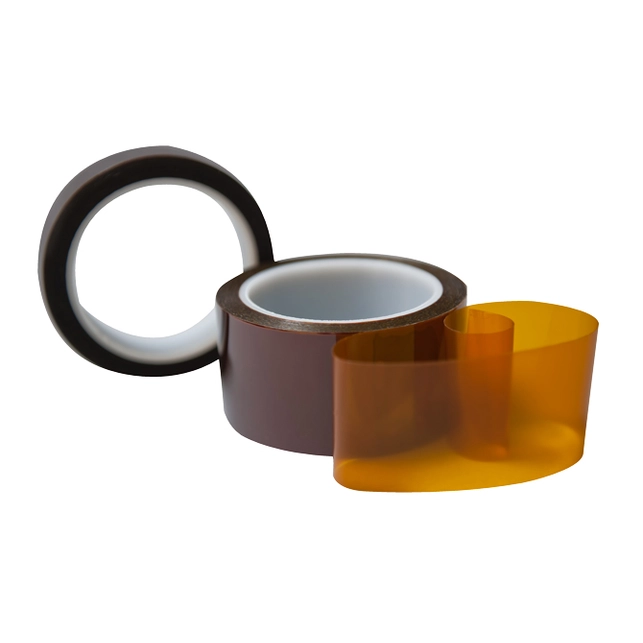

This tape is manufactured from commercial grade polymide film with a special silicone adhesive. The polymide carrier is only 1 mil, making the tape extremely conformable for irregular shapes and surfaces. Polymide tape has the ability to maintain its excellent physical, mechanical and electrical properties over a wide temperature range. Used for high temperature masking found in conformal coating of PCBs, protection of gold fingers during circuit board soldering and electrical insulation. Of high temperature coils, motors and transformers.
Features:
- Temperature range 500 deg.F/260 deg.C
- Meets class H requirements, flame retardant
- Excellent dielectric strength and chemical resistance
- Conformable for irregular shapes and uneven surfaces
- Removes cleanly even after long bake cycles with no residue
- Used for Powder Coating, E-Coating, Wave Soldering, Hot Wir Leveling and Circuit Boars Insulation
- Custom sizes available for same day shipping
- Standard die cut sizes in stock or can be made to your specifications
Specifications:
- Tensile Strength (lb/in) - 30
- Elongation (%) - 50
- Steel Adhesion(oz/in) - 25
- Dielectric strength - 6.5
- 1” Wide
