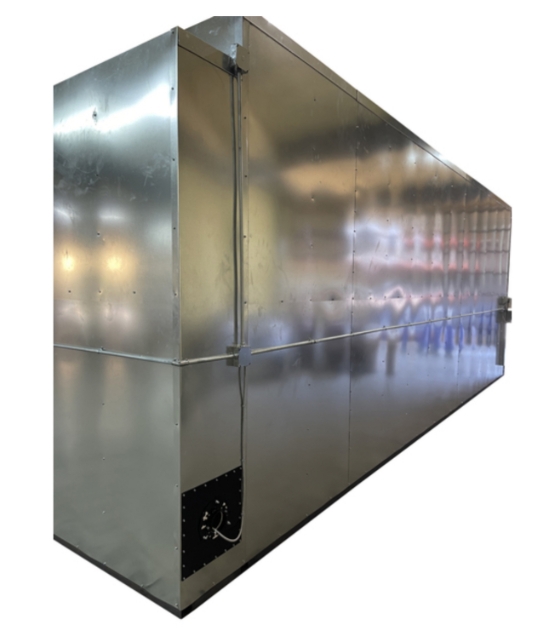

The standard oven is a rear mount burner box assembly, the side mount option is an upgrade and available at an additional cost.

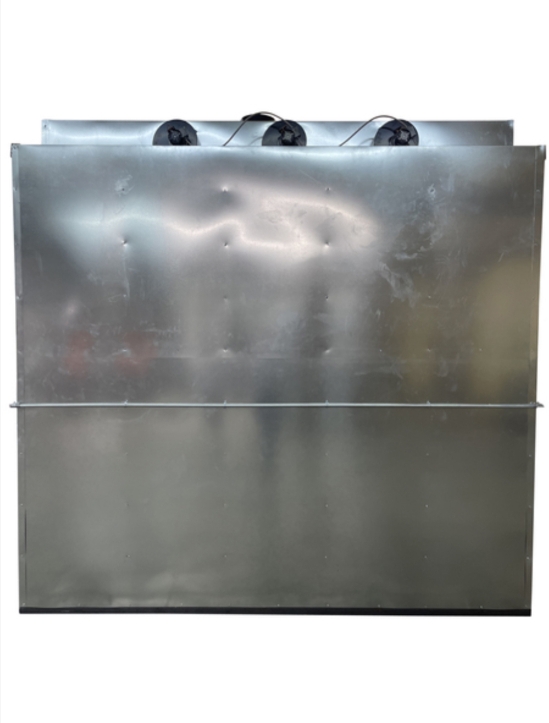

Rear Mount Burner Box:
- Excellent heating and efficiency
- Quick ramp up and recover time
- Efficient heat distribution with no cool spots

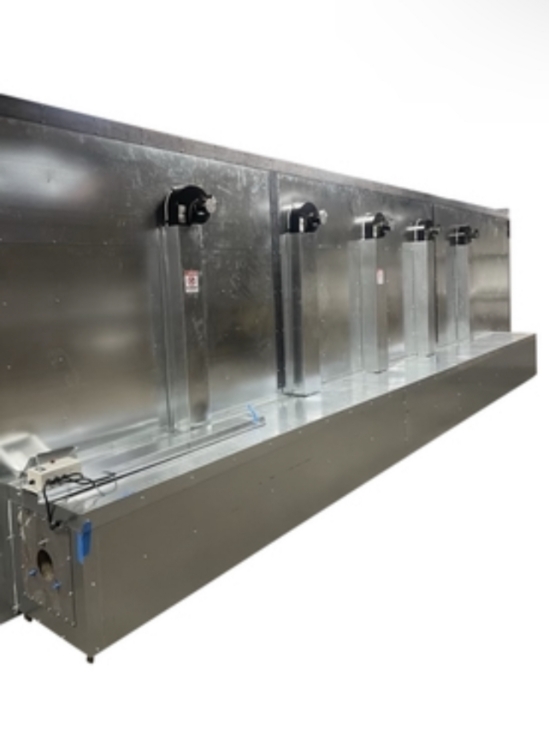

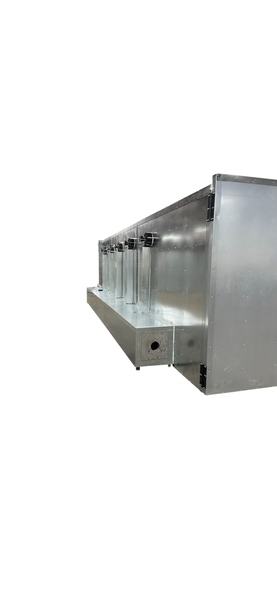

Side Mount Burner Box:
- Increased heating and efficiency
- Increased ramp up time and recovery time
- Efficient heat distribution and ensures no cool spots
- Perfect for pass through ovens
Specifications:
- Framework welded by certified welders
- 3"walls
- Insulated by 3" Rockwool
- Galvanized G90 Sheet Metal

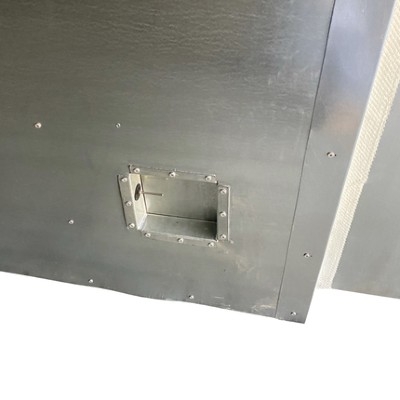

- Thermocouple Built Into Pocket On Inside Wall
- Direct Fire Wayne Burner

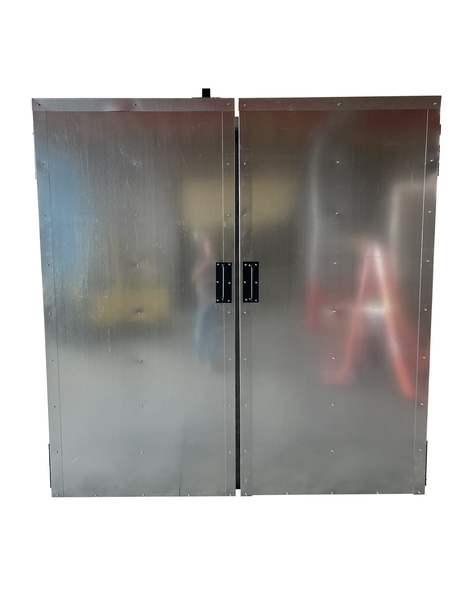

- Entry Door Has Welded Hinges
- Burner Box Constructed Out Of Welded Steel Tubing
- Single phase 240V Electric
- 10' x 10' x 20' Exterior Dimensions

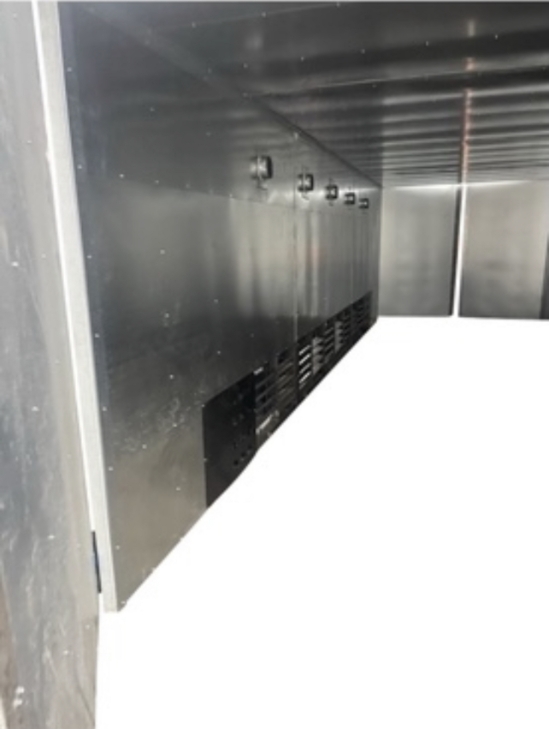

- Comes with dual circulation fans to ensure exceptional heat circulation
- 4000,000 BTU
- OD - 10'w X 10't X 20'd

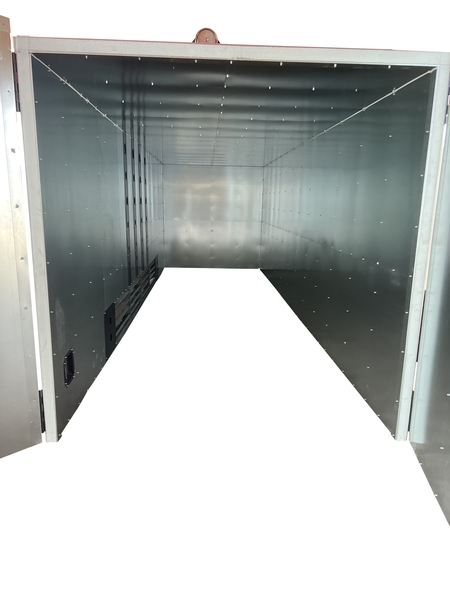

- ID - 9’7”w x 9’9”t x 19’9d
- Natural Gas or Propane

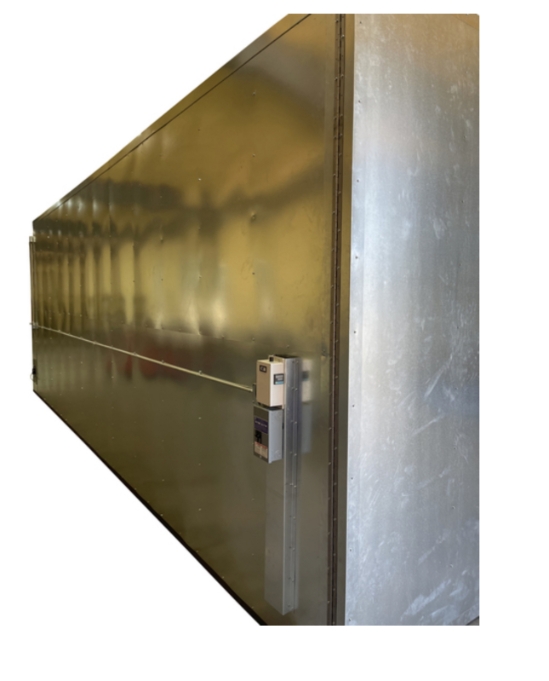

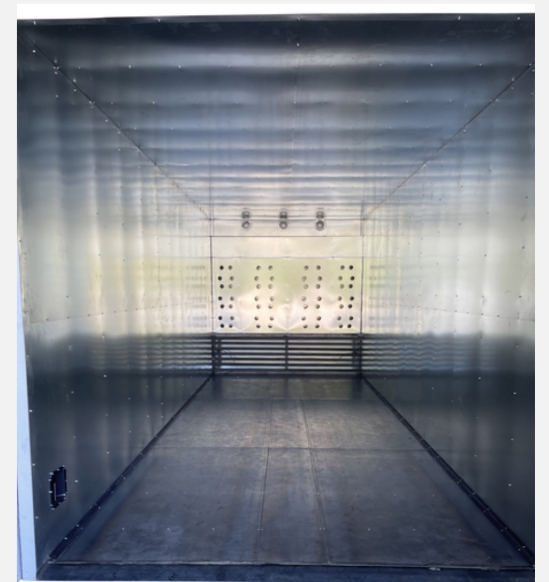

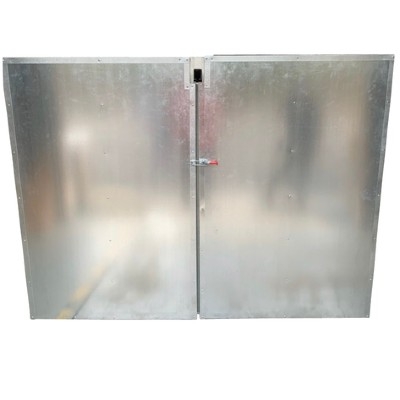

Pictures in this listing are just a depictions, variations of features, and components may differ as improvements are made.
*****Equipment pricing is constantly changing due to the rapid increases of steel prices, please contact us for for current listing price.*****
Additional Options:
- Lower Track System
- Through Doors
- Rear Man Door
- Small Access panel
- Window
- Can be custom built
- For outdoor use
Shipping:
- All of our units are hand delivered and charged per mile to prevent damage and enables us to expedite shipping to get you your product. This also enables you to have a physical person to speak with if you have concerns or questions once it arrives. Please make sure a lift or dollies are available once it does arrive.
THIS SIZE IS NOT OFFERED IN A ECONOMY STEEL STUD FRAME CONSTRUCTION
****Due to the continuous and rapid increase in steel and material prices. Please contact us for an updated cost on this equipment****
