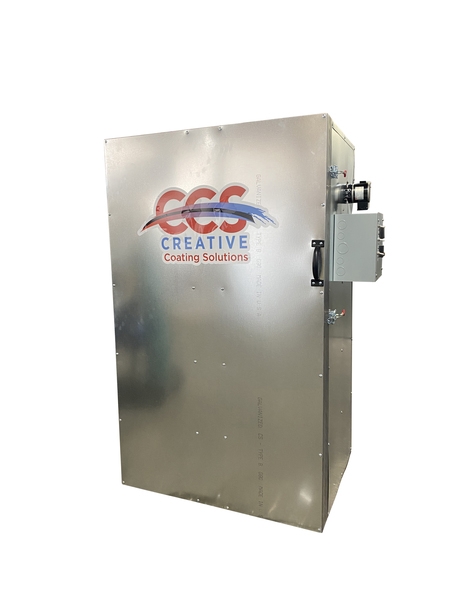

5' x 5' x 6' Gas Industrial Powder Coat Curing Oven

5' x 5' x 6' Economy Gas Fired Powder Coat Curing Oven

There are no reviews yet Write a review
Price: $9,100.00
    The product is in stock Availability: In Stock
    Usually ships In 2-4 Business Days
    Size:


    Update price
    Quantity:

    About This Item

    Specifications:

    • Natural Gas Bach Oven
    • G90 Galvanized Sheet Metal Inside and Out
    • 12 Gauge Plate Steel Floor
    • Stainless Steel Liner and Shroud Around Burner
    • Flame Retardant 1300F Rockwool Installation
    • Ceramic Fiber Blanket Behind The Stainless Liner
    • 120v Single Phase
    • 13A Draw
    • 3 1/2" Exhaust
    • OD - 5'w x 5'd x 6't
    • ID - 4’4”w x 4’8”d x 5’8”t
    • Natural Gas or Propane
    • 50,000 - 275.000 BTU Burner preset to the size of the oven (this needs installed and tuned by a licensed mechanical contractor)
    • Single Door

    Our ovens are integrated with all safety Interlocks and requirements Which Tite Them As A Class A Oven:

    • High and Low Gas Pressure Safety Interlocks
    • Circulation Safety Interlocks
    • Exhaust Safety Interlocks
    • Explosion Compliant Door Latches
    • Airflow Switch Interlock

    Additional Options:

    • Custom built Rack
    • Shelf Kit (includes 2 shelves and 4 brackets
    • Double Doors

    Shipping:

    • Liftgate available for units 4' x 4' x 7' and smaller only ($150.00)
    • Additional fee for a residential delivery ($150.00)

    Other Items To Consider:

    Powder Coating: The complete Finishers Handbook

    https://www.creativecoatingsol...

    Our 5' x 5' x 6' gas fired curing ovens meet all requirements to make them a Class A oven. We build our gas ovens with the user in mind as a quality, professional and cost effective addition to your curing process. This oven is built and tuned in house ready to to be piped in and tuned by your mechanical contractor.
