CFP 6750 Fire suppression system with Pressure switch

Item #: CFP 6750
There are no reviews yet Write a review
Price: $2,271.00
    The product is in stock Availability: In Stock
    Usually ships In 2-4 Business Days

    Quantity:

    About This Item

    CFP 6750

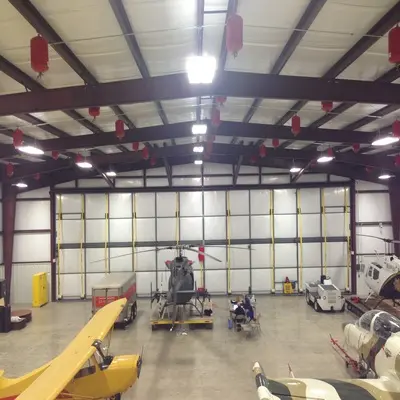

    The CFP 6750 is the biggest of our Dry Chemical units. It is installed vertically and covers 15’x15’x30’ spaces per unit. Multiple units can be used together to protect even larger spaces such as warehouses, storage facilities, mining spaces, airplane hangars, large freezer buildings, and/or recycling facilities. Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.

    This unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 155ºF (68ºC). The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.

    **Before Purchase Contact Us With Engineer Drawings So We Can Ensure The Proper Fire Suppression For Your Application**


    Contact Us For A Current Freight Quote On This Item



        Maximum Total Flood Volume15'x15'x30' = 6750ft³ / 4.57mx4.57mx9.14m =
        190.89m³
        Reach Coverage Area 15'x15' = 225ft² / 4.57mx4.57m = 20.88m²
        Temperature Rating -20°F to 120°F / -29°C to 49°C
        Cylinder Manchester 30# / Worthington 69#
        Diameter 12.25" / 31cm
        Height 19.56"+3.50 Coupling Assembly /
        50cm+8.90cm
        Capacity 50lbs / 22.68kg
        Unit Weight 81lbs / 36.74kg
        Ship Weight 85lbs / 38.56kg
        Approvals UL, ULC, CSFM, NYC #5754
        Propellant High Purity Compressed Dry Nitrogen
        Standard System Activation: 155° Fahrenheit / 68.3° Celsius
