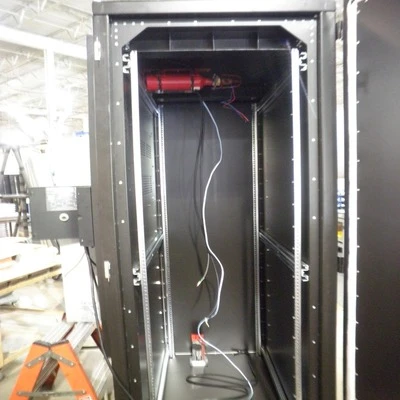

The CFP 96 is to be vertically installed. It is designed to be installed vertically to protect any space that is 4 x 4 x 6 or smaller. Ideal for cabinet enclosures, 3D printers, medical and science fume hoods, or any other small hard to reach location. Our CF-33 dry chemical agent is non-corrosive, non-conductive and non-toxic, making it a safe option for nearly any application.
The Cease Fire Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 200°F or ( 68°C). The temperature rating for each sprinkler head is stamped on the start shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designed at the time of purchase. When the temperature rise to activate the Cease Fire unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, the signal is sent at the time of discharge to activate accessory equipment such as an alarm.
- Unit is installed by the buyer or contractor when unit arrives
Install option preview and drawings:
https://ceasefire-embedded.par...
Email for additional CAD drawings :
- Extended wall mount
- Ceiling mount
- Extended ceiling mount
