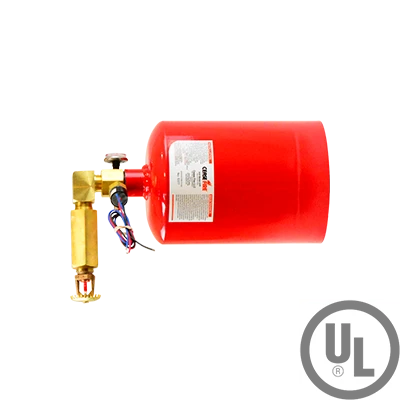

CFP 640 LP Fire Suppression System With Pressure Switch

Item #: CFP 640LP
There are no reviews yet Write a review
Price: $1,610.00
    The product is in stock Availability: In Stock
    Usually ships In 2-4 Business Days

    Quantity:

    About This Item

    CFP 640LP

    The CFP 640LP bridges the difficult gap between small spaces and mid-sized spaces.  It has all the same attributes as the CFP 640, but uses a low profile mounting system.  Designed to be installed horizontally, and to protect any space that is 8' x 8' x 9' or smaller.  Great for modular structures, portable shelters, storage rooms, quiet spaces, as well as spaces with height restrictions, challenges, or bottlenecks.  Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.

    This unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 155ºF (68ºC). The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.

    **Before Purchase Contact Us With Engineer Drawings So We Can Ensure The Proper Fire Suppression For Your Application**


    Contact Us For A Current Freight Quote On This Item


    Maximum Total Flood Volume8.2'x8.2'x10' = 672.4ft³ / 2.49mx2.49mx3.05m
    = 18.91m³
    Reach Coverage Area 8.20'x8.20' = 64.24ft² / 2.5mx2.5m = 6.25m²
    Temperature Rating -20°F to 120°F / -29°C to 49°C
    Cylinder Worthington
    Diameter 7.50" / 19.05cm
    Length 11.38"+3.12" Coupling Assembly /
    29cm+8.60cm
    Capacity 7lbs / 3.18kg
    Unit Weight 25.25lbs / 11.45kg
    Ship Weight 29lbs / 13.15kg
    Approvals UL, ULC, CSFM, NYC #5754
    Propellant High Purity Compressed Dry Nitrogen
    Standard System Activation: 155° Fahrenheit / 68.3° Celsius
